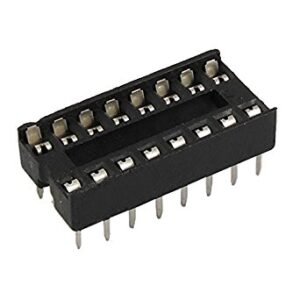

16 PIN IC BASE OR HOLDER 2.54MM PITCH
PITCH (SPACING BETWEEN PINS) 2.54mm
WIDTH 10MM
₹2.50₹2.60inc.GST16 PIN IC BASE OR HOLDER 2.54MM PITCH
₹2.50₹2.60inc.GST -
BC547B TO92 CDIL NPN Transistor 45V 100mA
Collector-Base Voltage (Vcb) (V) 50 Collector-Emitter Voltage (Vce) (V) 45 Emitter-Base Voltage (Veb) (V) 6 Collector Current (DC) (A) 100m Junction Temperature (°C) 150 Storage condition (℃) -65 to 150 Length (mm) 4.5 Width (mm) 3.5 Height (mm) 19 Weight (gm) 1 (approx) (each) Shipment Weight 0.01 kg Shipment Dimensions 5 × 8 × 2 cm ₹1.25₹1.50inc.GSTBC547B TO92 CDIL NPN Transistor 45V 100mA
₹1.25₹1.50inc.GST -
PIC16F873-04/SP – MICROCHIP
Processor: It is based on the 8-bit PIC architecture, specifically the PIC16 family.
CPU Speed: The maximum CPU speed of the PIC16F873-04/SP is 4 MHz.
Flash Memory: It has 7.37 KB (8192 words) of flash program memory for storing the user’s program code.
RAM: The microcontroller has 192 bytes of RAM for data storage.
I/O Pins: It has a total of 22 I/O pins, which can be configured as digital inputs or outputs.
Timers: The PIC16F873-04/SP features three timers: Timer0, Timer1, and Timer2. These timers can be used for various timing and counting purposes.
Analog-to-Digital Converter (ADC): It includes an 8-channel, 10-bit ADC module that can convert analog signals into digital values.
Serial Communication: The microcontroller supports multiple serial communication protocols, including UART (Universal Asynchronous Receiver-Transmitter) and SPI (Serial Peripheral Interface).
Interrupts: It has several interrupt sources that can be used to handle external events and improve the responsiveness of the system.
Power-Saving Features: The PIC16F873-04/SP includes power-saving features such as a low-power sleep mode, which helps conserve energy in battery-powered applications.
Operating Voltage: It operates at a voltage range of 2.0V to 5.5V, making it suitable for a variety of applications.
Package: The PIC16F873-04/SP is available in a 28-pin plastic DIP (Dual Inline Package) or SPDIP (Shrink Plastic Dual Inline Package).
₹567.00₹697.00inc.GSTPIC16F873-04/SP – MICROCHIP
₹567.00₹697.00inc.GST -
PIC16F877A-I/P DIP40 Microcontroller MCP
The PIC16F877A is a 28/40/44-Pin Enhanced Flash Microcontrollers . The following are the features:-
• Timer0: 8-bit timer/counter with 8-bit prescaler
• Timer1: 16-bit timer/counter with prescaler, can be incremented during Sleep via external crystal/clock
• Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler
• Two Capture, Compare, PWM modules
– Capture is 16-bit, max. resolution is 12.5 ns
– Compare is 16-bit, max. resolution is 200 ns
– PWM max. resolution is 10-bit
• Synchronous Serial Port (SSP) with SPI (Master mode) and I2C™ (Master/Slave)
Universal Synchronous Asynchronous Receiver Transmitter (USART/SCI) with 9-bit address detection
• Parallel Slave Port (PSP) – 8 bits wide with external RD, WR and CS controls (40/44-pin only)
• Brown-out detection circuitry for Brown-out Reset (BOR)
₹312.00₹330.00inc.GSTPIC16F877A-I/P DIP40 Microcontroller MCP
₹312.00₹330.00inc.GST -

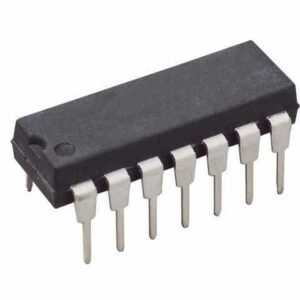

7432 U74HC32L DIP14 OR gate
The 74HC32 is a 14 Pin Quad 2-Input OR Gate IC. The 74HC32 provides four independent 2-input OR gates with standard push-pull outputs. The device is designed for operation with a power supply range of 2.0V to 6.0V. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
₹11.00₹15.00inc.GST7432 U74HC32L DIP14 OR gate
₹11.00₹15.00inc.GST -

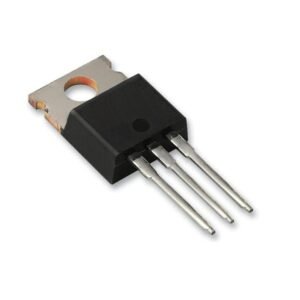

7812 IC L7812CV ST 12V 1.5A TO-220 VOLTAGE REGULATOR
- Thermal Overload Protection
- Short-circuit Protection
- Output Transition SOA Protection
- 4% Output Voltage Tolerance
- Guaranteed in Extended Temperature Range
- Applications: Power Management
₹12.00₹18.00inc.GST7812 IC L7812CV ST 12V 1.5A TO-220 VOLTAGE REGULATOR
₹12.00₹18.00inc.GST -
7408 DIP14 AND GATE 74F08PC
74HC08 is Quad 2-Input AND Gate 14 Pin IC. The 74HC08 provides provides 4 independent 2-input AND gates with standard push-pull outputs. The device is designed for operation with a power supply range of 2.0V to 6.0V. It utilize advanced silicon-gate CMOS technology to achieve operating speeds similar to LS-TTL gates with the low power consumption of standard CMOS integrated circuits. The HC08 has buffered outputs, providing high noise immunity and the ability to drive 10 LS-TTL loads. The 74HC logic family is functionally as well as pin-out compatible with the standard 74LS logic family. All inputs are protected from damage due to static discharge by internal diode clamps to VCC and ground.
Features:-
- 4 AND gates in a 14-Pin DIP Package
- Outputs Directly Interface to CMOS, NMOS and TTL
- Large Operating Voltage Range
- Wide Operating Conditions
Specifications:-
- Type: DIP Bipolar
- Voltage Rating: 2.0 to 6.0V
- Temperature Rating: 0 to 70Deg C
- Number of: 14 Pins
- Mounting: Through Hole
₹12.00₹15.00inc.GST7408 DIP14 AND GATE 74F08PC
₹12.00₹15.00inc.GST -

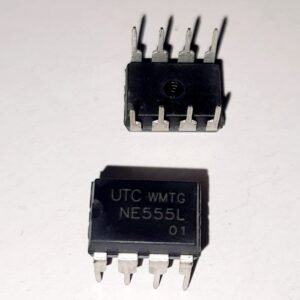

555 IC NE555L TIMER IC DIP
FEATURES
* High current driver capability(=200mA).
* Adjustable duty cycle.
* Timing from μs to hours.
* Turn off time less than 2μs.
* Operates in both astable and monostable modes.₹10.00₹15.00inc.GST 33% off555 IC NE555L TIMER IC DIP
₹10.00₹15.00inc.GST 33% off -
-
AT89S52-24PU DIP-40 Microcontroller
- Package/Case: DIP-40
- 8K Bytes of In-System Reprogrammable Flash Memory
- Endurance: 1,000 Write/Erase Cycles
- Fully Static Operation: 0 Hz to 33 MHz
- Three-level Program Memory Lock
- 256 x 8-Bit Internal RAM
- 32 Programmable I/O Lines
- Three 16-bit Timer/Counters
- Eight Interrupt Sources
- Programmable Serial Channel
- Low Power Idle and Power Down Modes
₹113.00₹133.00inc.GSTAT89S52-24PU DIP-40 Microcontroller
₹113.00₹133.00inc.GST -

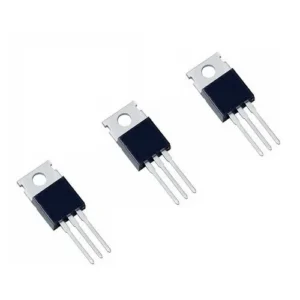

L7809CV TO-220 Linear Voltage Regulator
- Fixed output voltage is 9V
- Output current is 0.5A
- Dropout voltage is 2V
- Maximum DC input voltage is 35V
- Output transition SOA protection
- Output voltage tolerance is 4%
₹9.00₹50.00inc.GSTL7809CV TO-220 Linear Voltage Regulator
₹9.00₹50.00inc.GST -

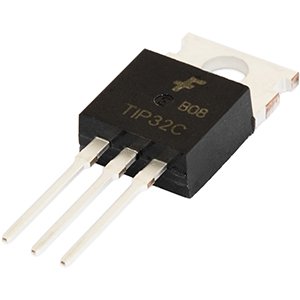

TIP32C TIP32100v 3A PNP Power Transistor
- IC: TIP32c
- Polarity: PNP
- Transistor type: BJT single power
- Pin counts: 3
- Manufacturer: Fairchild OR ST
- Package contains: 1 x TIP32c transistor IC
₹12.00₹50.00inc.GSTTIP32C TIP32100v 3A PNP Power Transistor
₹12.00₹50.00inc.GST -
₹24.15

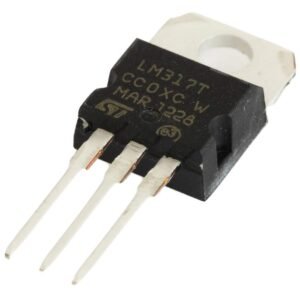

₹50.00inc.GSTLM317T Adjustable Voltage Regulator
₹24.15₹50.00inc.GST -

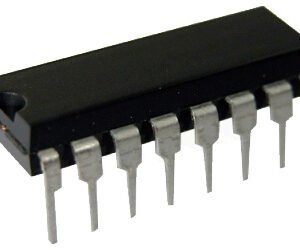

74HC165 8-Bit Parallel In/Serial Out Shift Register IC DIP-16 Package
- IC Name: 74HC165
- Package/Case: DIP-16
₹20.00₹50.00inc.GST74HC165 8-Bit Parallel In/Serial Out Shift Register IC DIP-16 Package
₹20.00₹50.00inc.GST -

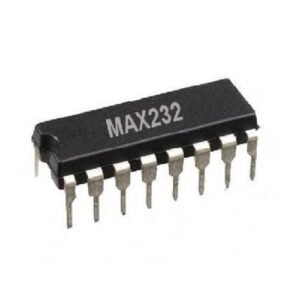

MAX232CPE PDIP-16 Interface IC
- Operates With Single 5V Power Supply
- Two Drivers and Two Receivers
- ±30-V Input Levels
- Designed to be Interchangeable With Maxim MAX232
₹18.75₹50.00inc.GSTMAX232CPE PDIP-16 Interface IC
₹18.75₹50.00inc.GST
