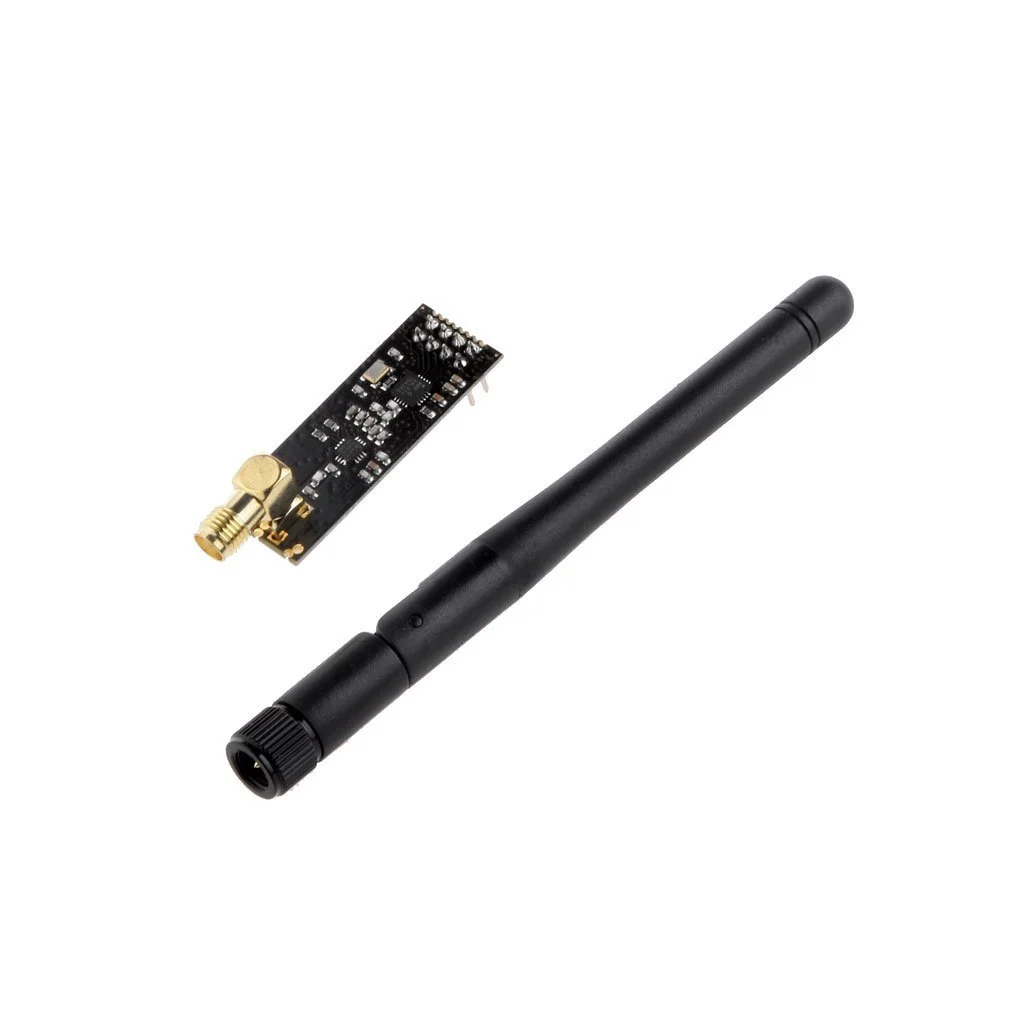

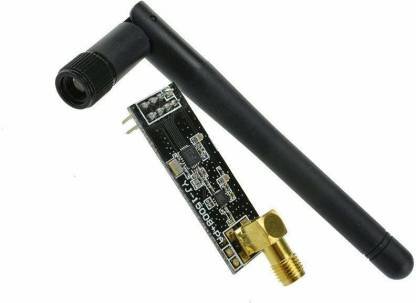

2.4GHz NRF24L01+PA+LNA SMA Wireless Transceiver Antenna
Roll over image to zoom in
₹248.00₹350.00 inc.GST (-29%)
- Voltage: 3-3.6V (recommended 3.3V) V.
- Maximum output power: +20dBm.
- Power-down mode current: 4.2uA.
- Operating Range: 1Km
- Antenna Gain (peak): 2Dbi.
- 2MB rate (Open area): 520m.
- 1MB rate (Open area): 750m.
- 250Kb rate (Open area): 1100m.
- It uses 2.4GHz global open ISM band.
- SPI interface facilitates the communication with MCU I/O port.
Frequently Bought Together
Customers who bought this item also bought
-
-
₹92.04
₹108.61inc.GSTRF Transmitter and Receiver kit
₹92.04₹108.61inc.GST -
₹100.00
₹150.00inc.GST5V 10A 2 Channel Relay Module (colour may vary)
₹100.00₹150.00inc.GST -
₹147.00
₹400.00inc.GSTMQ-135 Air Quality Sensor MQ-135 Gas Sensor Detection Module For Arduino M2
₹147.00₹400.00inc.GST
The NRF24L01 module is the latest in RF modules. This module uses the 2.4GHz transceiver from Nordic Semiconductor, the NRF24L01+. This transceiver IC operates in the 2.4GHz band and has many new features.

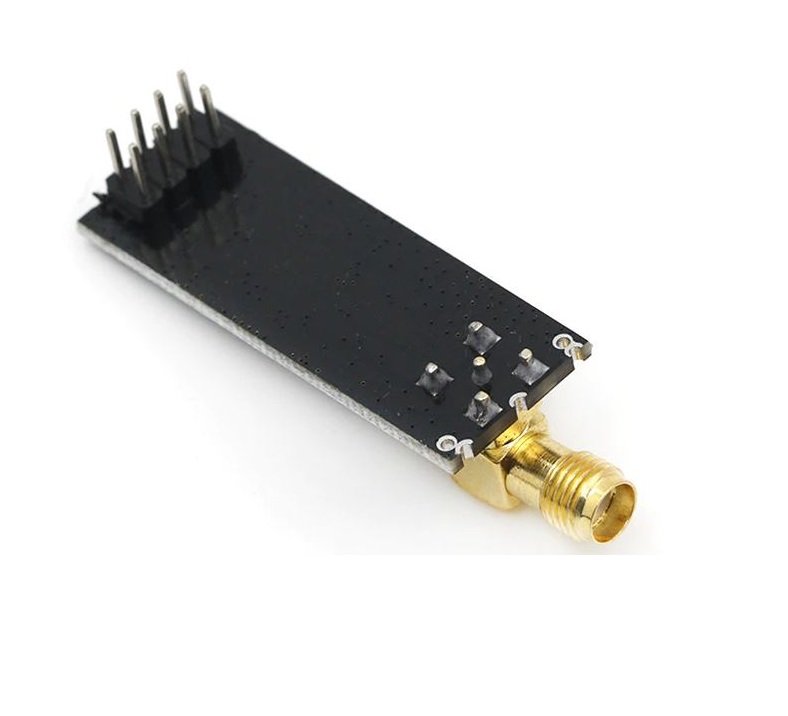

This board features a reverse polarized SMA connector for maximum RF range. And there is PA and LNA circuit on board, with the external antenna it can reach long distance than the one without these parts.This module comes with the 2.4G antenna (2DB), with a 250Kbps transmission rate on open-air it can reach the 800-1K meters communication distance.
Additional information
Weight | 15 kg |
---|---|
Dimensions | 10 × 7 × 2 cm |
