CNC 3D Printer Mech Endstop Limit Switch
Roll over image to zoom in
₹46.00₹150.00 inc.GST (-69%)
- Wire type: 22AWG
- Working voltage: 300V
- Working Current: 2A
- Temperature resistance: 80° C
- Cable length: 70cm
Frequently Bought Together
- This item: CNC 3D Printer Mech Endstop Limit Switch(₹46.00
₹150.00inc.GST (-69%)) - Jumper Wire Male to Female 20cm(₹1.75
₹2.50inc.GST)
Customers who bought this item also bought
-
₹1.75
₹2.50inc.GSTJumper Wire Male to Female 20cm
₹1.75₹2.50inc.GST -
-
₹38.00
₹47.00inc.GSTInfrared ( IR sensor ) Module
₹38.00₹47.00inc.GST -
₹110.00
₹150.00inc.GSTI2C INTERFACE MODULE FOR LCD(16X2, 20X4) Micro Controller Board
₹110.00₹150.00inc.GST -
₹155.00
₹255.00inc.GSTLCD 16×2 display yellow back light
₹155.00₹255.00inc.GST

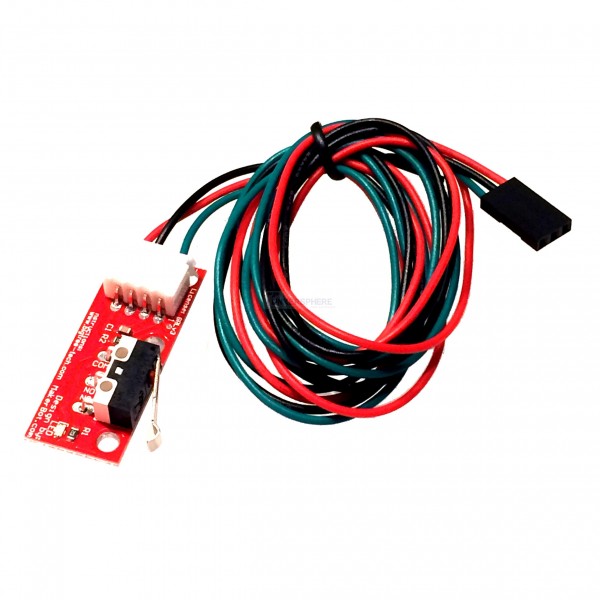

CNC 3D Printer Mech endstop Switch uses a lever switch to detect when it is activated. The switch is wired up so that when activated, it pulls the signal to LOW. There is also an LED on the board that will light up when the switch is activated. It uses a standard 4 pin 100″ pitch header and accepts a standard, old-style CD-ROM audio connector cable. The mechanical endstop is a simple solution to a simple problem. We want to be able to detect when an X/Y/Z stage has reached its minimum or maximum. Instead of messing with flags or complicated light beam interruption, we use a mechanical switch.
Additional information
| Weight | 6 kg |
|---|---|
| Dimensions | 10 × 7 × 3 cm |
