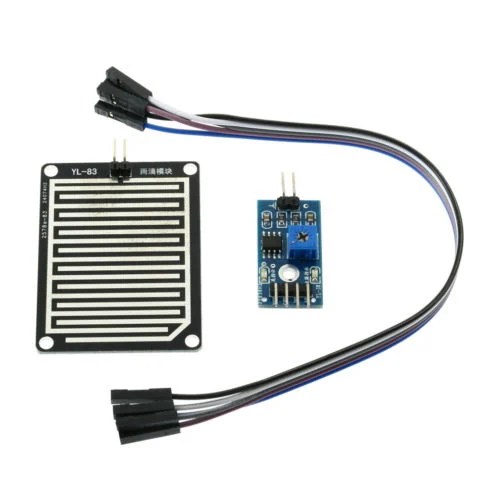

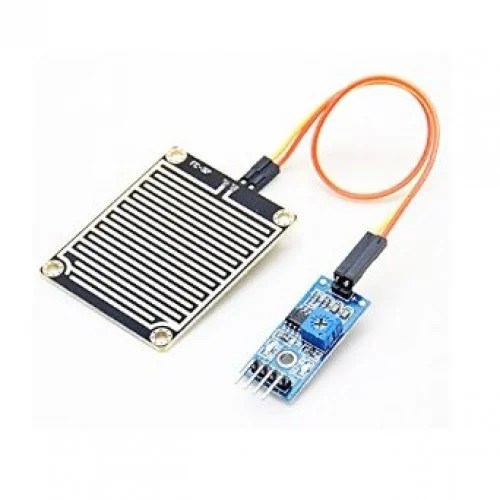

Raindrops Detection Sensor Module
₹57.00₹199.00 inc.GST (-71%)
- Operating voltage: 5V
- Provide both digital and analog output
- Adjustable sensitivity
- Output LED indicator
- Compatible with Arduino
- TTL Compatible
- Bolt holes for easy installation
Frequently Bought Together
- This item: Raindrops Detection Sensor Module(₹57.00
₹199.00inc.GST (-71%)) - 5V 10A 2 Channel Relay Module (colour may vary)(₹100.00
₹150.00inc.GST)
Customers who bought this item also bought
-
-
₹50.00
₹99.00inc.GSTFlame Sensor infrared Receiver Ignition source detection module (color may vary )
₹50.00₹99.00inc.GST -
₹38.00
₹47.00inc.GSTInfrared ( IR sensor ) Module
₹38.00₹47.00inc.GST
The Raindrops Detection sensor module is used for rain detection. It is also for measuring rainfall intensity. Rain sensor can be used for all kinds of weather monitoring and translated into output signals and AO.
It includes a printed circuit board (control board) that “collects” the raindrops. As raindrops are collected on the circuit board, they create paths of parallel resistance that are measured via the op-amp. The lower the resistance (or the more water), the lower the voltage output. Conversely, the less water, the greater the output voltage on the analog pin. A completely dry board, for example, will cause the module to output 5V.
The module includes a rain board and a control board that is separate for more convenience. It has a power indicator LED and an adjustable sensitivity through a potentiometer. The module is based on the LM393 op-amp.
