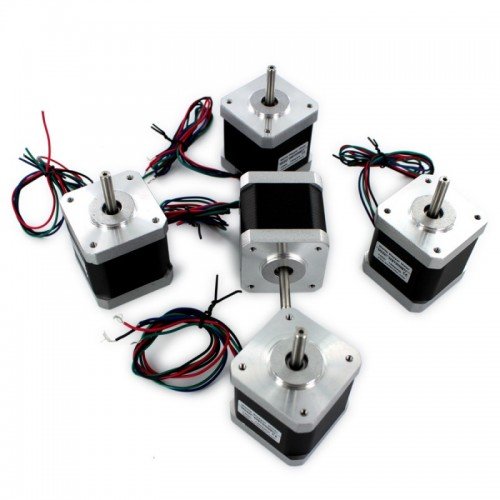

Stepper Motor Nema-17
Roll over image to zoom in
₹630.00₹731.60 inc.GST (-14%)
200 steps per revolution, 1.8 degrees
Bipolar stepper, requires 2 full H-bridges!
4-wire, 8 inch leads
42mm/1.65″ square body
31mm/1.22″ square mounting holes, 3mm metric screws (M3)
5mm diameter drive shaft, 24mm long, with a machined flat
12V rated voltage (you can drive it at a lower voltage, but the torque will drop) at 350mA max current
28 oz*in, 20 N*cm, 2 Kg*cm holding torque per phase
35 ohms per winding
Additional information
| Weight | 0.1 kg |
|---|---|
| Dimensions | 5 × 5 × 8 cm |
