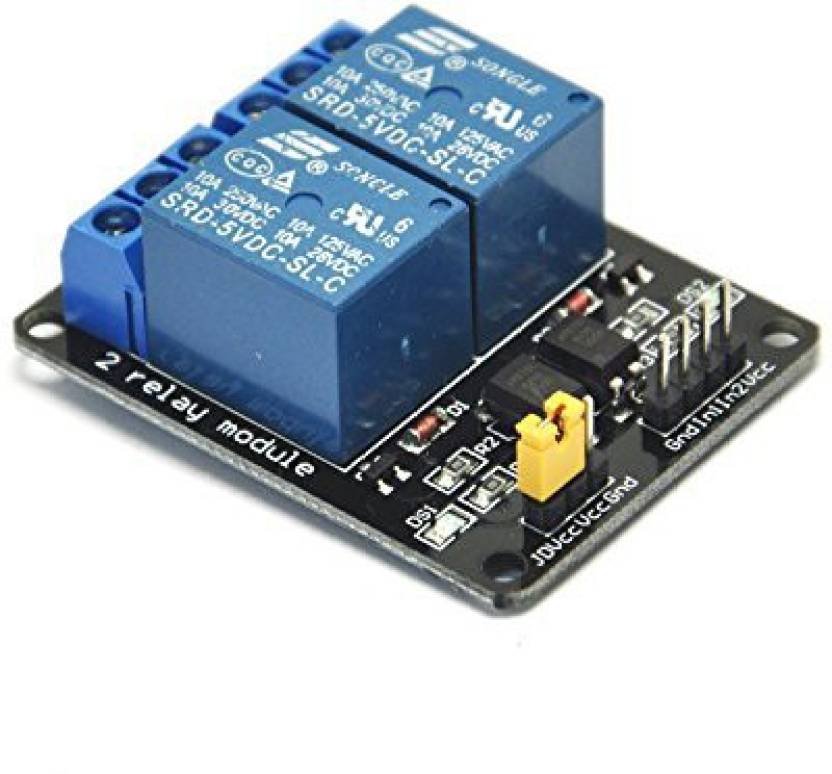

5V 10A 2 Channel Relay Module (colour may vary)
Roll over image to zoom in
₹100.00₹150.00 inc.GST (-33%)
| Size: 50. 6mm (l) x 38. 8mm (w) x 19. 3mm (h) Weight: 30g PCB color black Around the board with 4 mounting holes, hole diameter 3. 1 mm, easy installation and fixing Relay high quality single relay single pole double throw A common end, a beginning, a closed-end, optical coupling isolation, good anti-interference Low suction, high level release |
| 5V 10A 2 channel relay module shield for Arduino ARM PIC AVR DSP electronic relay. The item is a 24v 2-channel relay interface board, it can be controlled directly by a wide range of microcontrollers such as Arduino, AVR, PIC, ARM and so on. If you have ever had a project that required an interface with a high power device that needed AC or DC voltage and high current levels you have probably already discovered that attempting to control those devices directly with your Arduino, Raspberry PI and other Microcontroller or Microprocessor can be a real challenge. This board is designed to interface easily with your 5V IO’s without consuming much current on your IO pins. Relay contact capacity 250V10A. Relay output normally open, normally closed. Low level valid. 5V relay signal input voltage range, 0-5V. VCC power to the system. JD-VCC relay in the power supply. The default 5V relay. JD-VCC and VCC can be a shorted. Ring Instructions, VCC: System power cathode. GND: System power cathode. IN1-IN2: Relay control port. |
Additional information
| Weight | 50 kg |
|---|---|
| Dimensions | 3 × 2 × 3 cm |
by AntonioJus
Input: VCC : Connected to positive supply voltage supply power according to relay voltage GND : Connected to negative supply voltage IN1: Signal triggering terminal 1 of relay module IN2: Signal triggering terminal 2 of relay module Output: Each submodular of the relay has one NC nomalclose , one NO nomalopen and one COM Common. So there are 2 NC, 2 NO and 2 COM of the channel relay in total. NC stands for the normal close port contact and the state without power; No stands for the normal open port contact and the state with power.
by AntonioJus
This is a LOW Level 5V 2-channel relay interface board, and each channel needs a 15-20mA driver current. It can be used to control various appliances and equipment with large current. It is equiped with high-current relays that work under AC250V 10A or DC30V 10A.
