Description

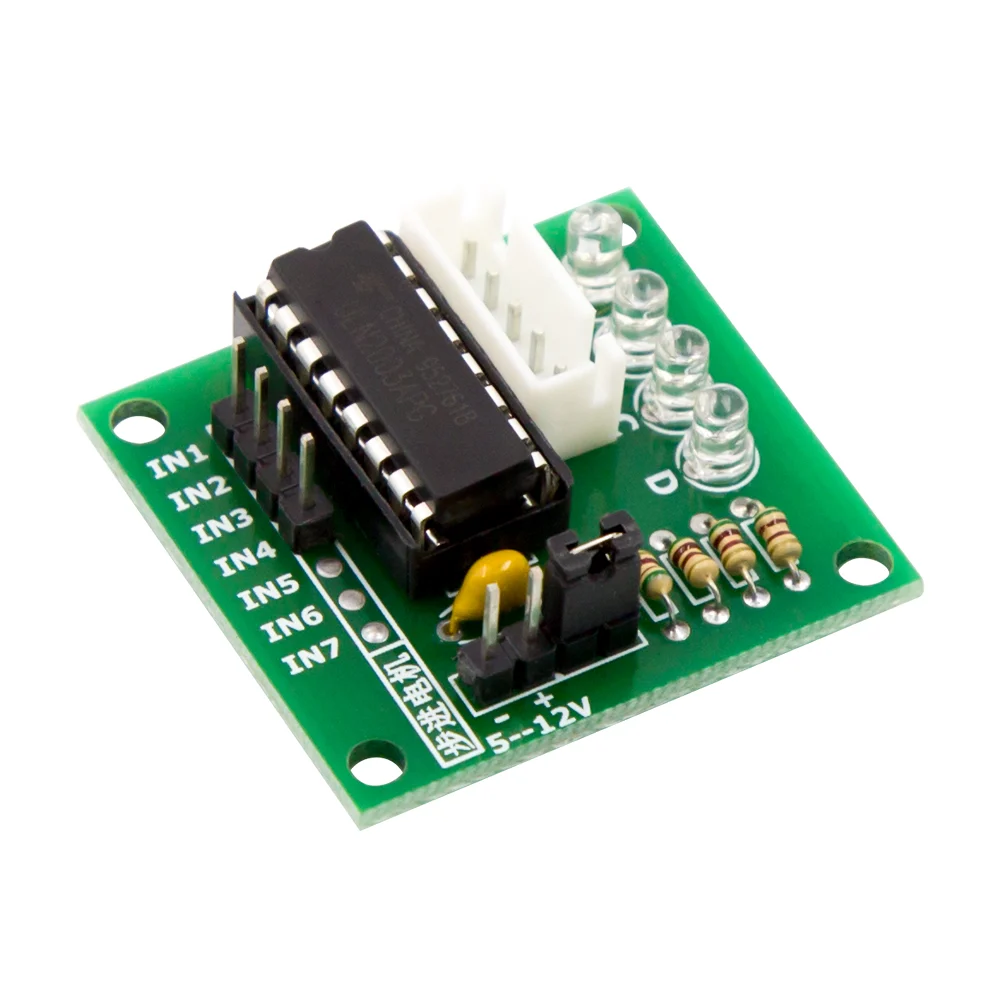

ULN2003 Driver Module – Stepper Motor Driver Board
The ULN2003 Driver Module is a compact stepper motor driver board designed for controlling compatible unipolar stepper motors, commonly used with the 28BYJ-48 stepper motor.
The module uses a ULN2003 Darlington transistor array to provide the required current-driving capability between a microcontroller and the stepper motor. It allows development boards such as Arduino and other compatible microcontrollers to control stepper motor movement through simple digital control signals.
The board includes a dedicated motor connection interface and input pins for connecting the control signals from a microcontroller. Its compact design makes it suitable for robotics, automation, CNC prototypes, educational projects, and DIY electronics.
Key Features
- ULN2003-based stepper motor driver board
- Designed for compatible unipolar stepper motors
- Commonly used with 28BYJ-48 stepper motors
- Simple interface for microcontroller control
- Compact and easy-to-use module
- LED indicators for motor control channels
- Suitable for Arduino and other microcontroller projects
- Useful for robotics and automation applications
- Convenient for DIY and educational projects
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Stepper Motor Driver Module |
| Driver IC | ULN2003 |
| Driver Type | Darlington Transistor Array |
| Motor Type | Compatible Unipolar Stepper Motors |
| Common Motor | 28BYJ-48 |
| Control Interface | Digital Input Pins |
| Motor Interface | Stepper Motor Connector |
| Indicators | Onboard LED Indicators |
| Application | Stepper Motor Control |
Typical Interface
The module generally provides four control input pins for the motor phases along with power and ground connections.
| Connection | Function |
|---|---|
| IN1 | Motor Control Input |
| IN2 | Motor Control Input |
| IN3 | Motor Control Input |
| IN4 | Motor Control Input |
| VCC | Power Supply |
| GND | Ground |
Note: Pin labels and connector arrangements can vary slightly between board versions.
Applications
- Arduino stepper motor projects
- 28BYJ-48 stepper motor control
- Robotics
- Automation projects
- DIY electronics
- Educational electronics
- Camera slider projects
- Small positioning systems
- Mechanical prototypes
- Embedded control systems
Compatibility
Commonly used with:
- 28BYJ-48 stepper motors
- Arduino boards
- Compatible microcontrollers
- Robotics controllers
- DIY automation systems
Important Note
The ULN2003 driver board is intended for compatible stepper motors and should be operated within the electrical limits of the specific motor and board version. The commonly paired 28BYJ-48 motor is available in different variants, so verify the motor’s voltage and wiring before connecting it.
This is ULN2003 Driver Module Stepper Motor Driver Board for driving and controlling stepper motors.
ULN2003 Stepper Motor Driver Board uses the ULN2003 DARLINGTON ARRAYS to drive the 4-phase 5-wire stepper motor (5v-12v).
It’s easy to use Arduino or another development platform to drive the stepper motor by this diver board.
The 5 Line 4 Phase can be driven by ordinary ULN2003 chip can also be connected in phase 2 development board used for supporting the use of a direct plug and easy to use stepper motor used in the development board. A, B, C, D four-phase LED indicates the status of the stepper motor work.
