Description

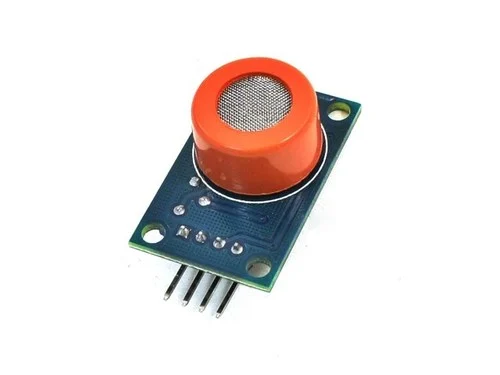

MQ-3 Alcohol Detector Gas Sensor Module
The MQ-3 Alcohol Detector Gas Sensor Module is a gas-sensing module designed for detecting alcohol vapour in the surrounding environment. It is commonly used in Arduino, microcontroller, robotics, educational, and DIY electronics projects.
The module provides an easy-to-use interface for connecting the sensor to a compatible development board. It can be used to build prototype alcohol detection systems, gas monitoring projects, and other applications where alcohol vapour detection is required.
The MQ-3 sensor is particularly sensitive to alcohol vapour and can provide an electrical response that changes with the concentration of the detected gas.
Key Features
- MQ-3 alcohol gas sensor
- Designed for alcohol vapour detection
- Suitable for Arduino and microcontroller projects
- Easy-to-use sensor module
- Compact PCB design
- Useful for gas detection and monitoring prototypes
- Suitable for robotics and automation projects
- Digital and/or analog output depending on module design
- Useful for educational and DIY electronics projects
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Gas Sensor Module |
| Sensor Model | MQ-3 |
| Detection | Alcohol Vapour |
| Sensor Type | Semiconductor Gas Sensor |
| Interface | Module Output |
| Application | Alcohol Vapour Detection |
| Suitable For | Arduino, Microcontrollers, Robotics & DIY Projects |
Applications
- Alcohol vapour detection projects
- Arduino gas sensor projects
- Gas monitoring prototypes
- Robotics projects
- Microcontroller-based detection systems
- Educational electronics
- DIY sensor projects
- Safety and monitoring prototypes
- Smart electronics projects
How It Works
The MQ-3 sensor responds to alcohol vapour present in the surrounding air. When the sensor is exposed to the target gas, its electrical characteristics change. The module can process this response and provide an output that can be read by a compatible microcontroller.
For accurate concentration measurement, the sensor requires appropriate calibration and environmental compensation.
Important Note
The MQ-3 is intended for gas detection and electronic prototyping. It should not be treated as a certified breathalyser or used as the sole basis for medical, legal, workplace, or safety-critical decisions. Sensor readings can be affected by temperature, humidity, other gases, warm-up time, and calibration.

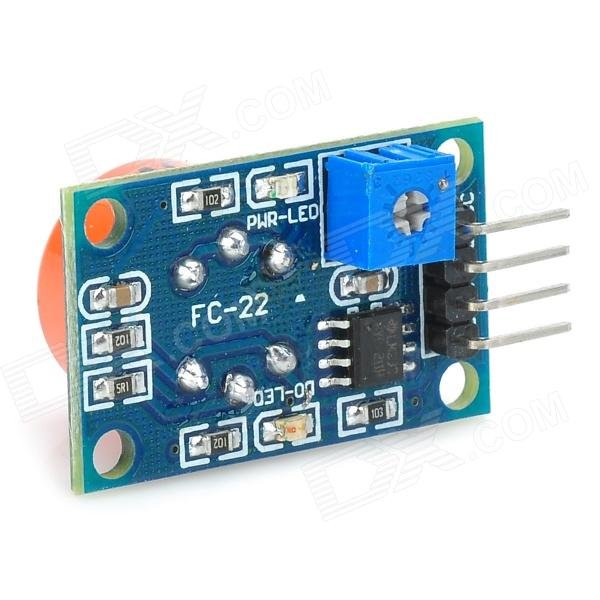

This MQ-3 Alcohol Detector Gas Sensor Module is simple to use. MQ-3 Alcohol Detector Module which can sense the presence of Alcohol in the air. The module uses our MQ-3 sensor. It simplifies the interface to the odd pin spacing of the sensor and provides an interface through standard 4 x 0.1″ header pins.
It provides an analog output corresponding to the concentration of the gas in the air and an easy to use digital output.
The onboard potentiometer can be used to set the maximum gas concentration beyond which the digital output gets triggered. Just power the module with 5V set the threshold and you can start getting the gas concentration of the air around the sensor! An onboard LED signals the presence of any gas. Perfect sensing alcohol concentration on your breath just likes a common breathalyzer.
