Product Description

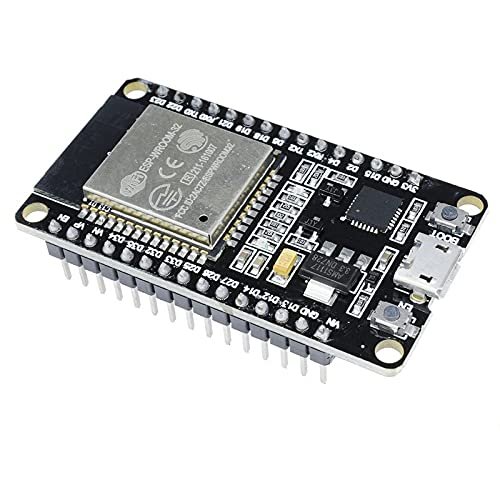

The ESP32 NodeMCU 30-Pin Wi-Fi Development Board is a versatile microcontroller board designed for Internet of Things (IoT), wireless communication, robotics, and smart automation projects. It features an ESP32 microcontroller with built-in Wi-Fi and Bluetooth connectivity, making it suitable for connected devices and embedded applications.
The board provides multiple GPIO pins for connecting sensors, displays, motors through suitable driver circuits, relays, and other electronic components. It can be programmed using the Arduino IDE and other compatible development environments.
With its USB programming interface and wireless capabilities, this board is ideal for beginners, students, hobbyists, and developers building IoT prototypes and smart electronic systems.
Key Features
- ESP32-based development board
- 30-pin board layout
- Built-in Wi-Fi connectivity
- Bluetooth support, depending on ESP32 chip variant
- Multiple GPIO pins for interfacing with external components
- USB interface for programming and serial communication
- Supports Arduino IDE and compatible development tools
- Suitable for IoT and home automation projects
- Compact design for prototyping and embedded applications
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Wi-Fi Development Board |
| Board Name | ESP32 NodeMCU |
| Pin Configuration | 30-pin version |
| Microcontroller | ESP32 family |
| Wi-Fi | Built-in Wi-Fi |
| Bluetooth | Supported on compatible ESP32 variants |
| GPIO | Multiple digital input/output pins |
| Analog Input | ADC channels available; details depend on chip and board |
| Programming Interface | USB, depending on board version |
| Programming Platform | Arduino IDE and compatible ESP32 tools |
| Logic Voltage | 3.3V |
| Application | IoT, Robotics & Automation |
Applications
- Internet of Things (IoT) projects
- Smart home automation
- Wireless sensor monitoring
- Web-based device control
- Environmental monitoring
- Robotics and embedded systems
- Wi-Fi-enabled data logging
- Bluetooth-based control projects
- Smart agriculture
- DIY electronics and prototyping
Important Note
ESP32 development boards are available with different chip variants and USB-to-serial converters. Bluetooth capabilities, pin assignments, USB connector type, and supported features may vary. The ESP32 uses 3.3V logic, so do not connect 5V signals directly to its GPIO pins. Check the exact board pinout before wiring external components.
The core of this module is the ESP32 chip, which is scalable and adaptive. Two CPU cores can be individually controlled. The clock frequency is adjustable from 80 MHz to 240 MHz and supports RTOS. It is a general-purpose Wi-Fi+BT+BLE MCU module.The module integrates traditional Bluetooth, Bluetooth low energy and Wi-Fi. Wide range of uses: Wi-Fi supports a wide range of communication connections, as well as a direct connection to the Internet via a router; Bluetooth allows users to connect to a mobile phone or broadcast a BLE Beacon for signal detection. The module supports data rates up to 150 Mbps and antenna output power of 20dBm for maximum wireless communication. As a result, this module has industry-leading specifications and performs well in terms of high integration, wireless transmission distance, power consumption, and network connectivity
