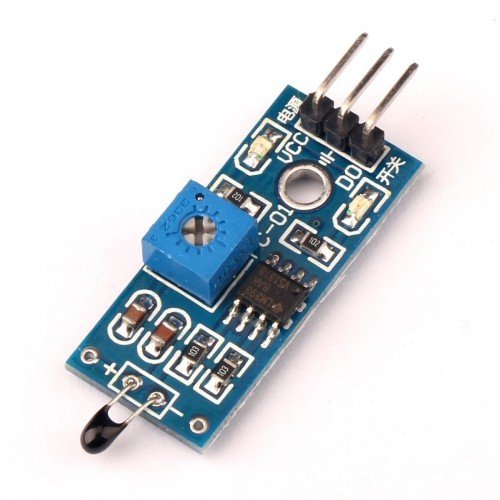

NTC Thermister Module

Come with broad resistance range

Thermistor cost is economical

Provided with lacquer-coated thermistor disk

Copper leads have coating of tin.

Having lead spacing of 5.0 mm

Component remarked with resistance and tolerance

Good stability, durability in environment

Provide high accuracy in resistance and B-constant

Product is not containing lead

Technical Specifications:

Resistance at 25 degrees C: 10K – 1%

B-value (material constant) = 3950 – 1%

Dissipation factor (loss-rate of energy of a mode of oscillation) δ th = (in air)approx.7.5mW/K

Thermal cooling time constant <= (in air) 20 seconds

Thermistor temperature range -55 °C to 125 °C
