Description
Product Description

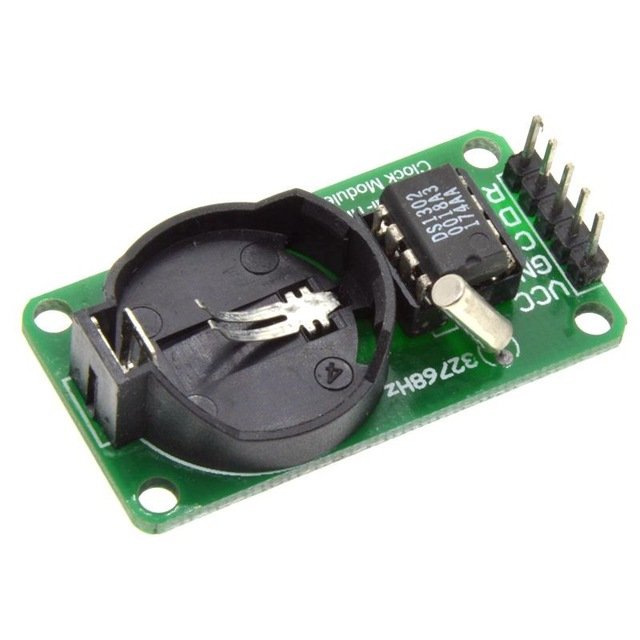

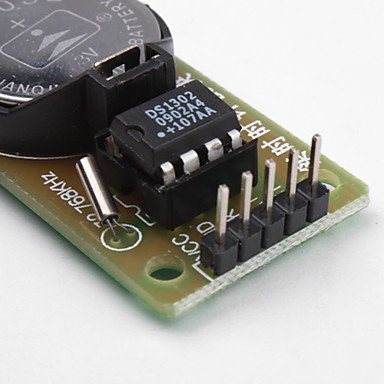

The DS1302 Real-Time Clock (RTC) Module is a timekeeping module designed to track time and date in electronic projects. It uses the DS1302 RTC chip to maintain seconds, minutes, hours, day, date, month, and year information.
The module communicates with a microcontroller using a simple 3-wire serial interface, making it suitable for Arduino and other compatible embedded systems. It can be used in digital clocks, time-based automation, data logging, attendance systems, and other projects that require timekeeping.
This product is supplied without a battery, so a compatible backup battery may need to be purchased separately if the board supports battery backup.
Key Features
- DS1302 real-time clock IC
- Tracks time and calendar information
- Simple 3-wire serial communication
- Backup battery support on compatible board versions
- Suitable for digital clock and calendar projects
- Compact module for embedded applications
- Compatible with Arduino and supported microcontrollers
- Supplied without battery
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Real-Time Clock Module |
| RTC Chip | DS1302 |
| Communication Interface | 3-wire serial interface |
| Signals | CE/RST, I/O, SCLK |
| Timekeeping | Seconds, Minutes, Hours |
| Calendar | Day, Date, Month, Year |
| Backup Battery | Not included |
| Number of Pins | 12-pin version, as specified |
| Application | Time and Date Tracking |
| Compatible Platforms | Arduino and compatible microcontrollers |
Typical Applications
- Digital clocks and calendars
- Time-based automation
- Data logging with timestamps
- Attendance systems
- Scheduled relay control
- Electronic alarms
- Robotics projects
- Arduino and microcontroller projects
- DIY electronics
Important Note
The DS1302 uses a 3-wire serial interface, not I2C. The exact pin layout, battery holder, and required backup battery depend on the supplied board version. Please check the board markings and documentation before connecting it. A battery is not included with this product.
