Description

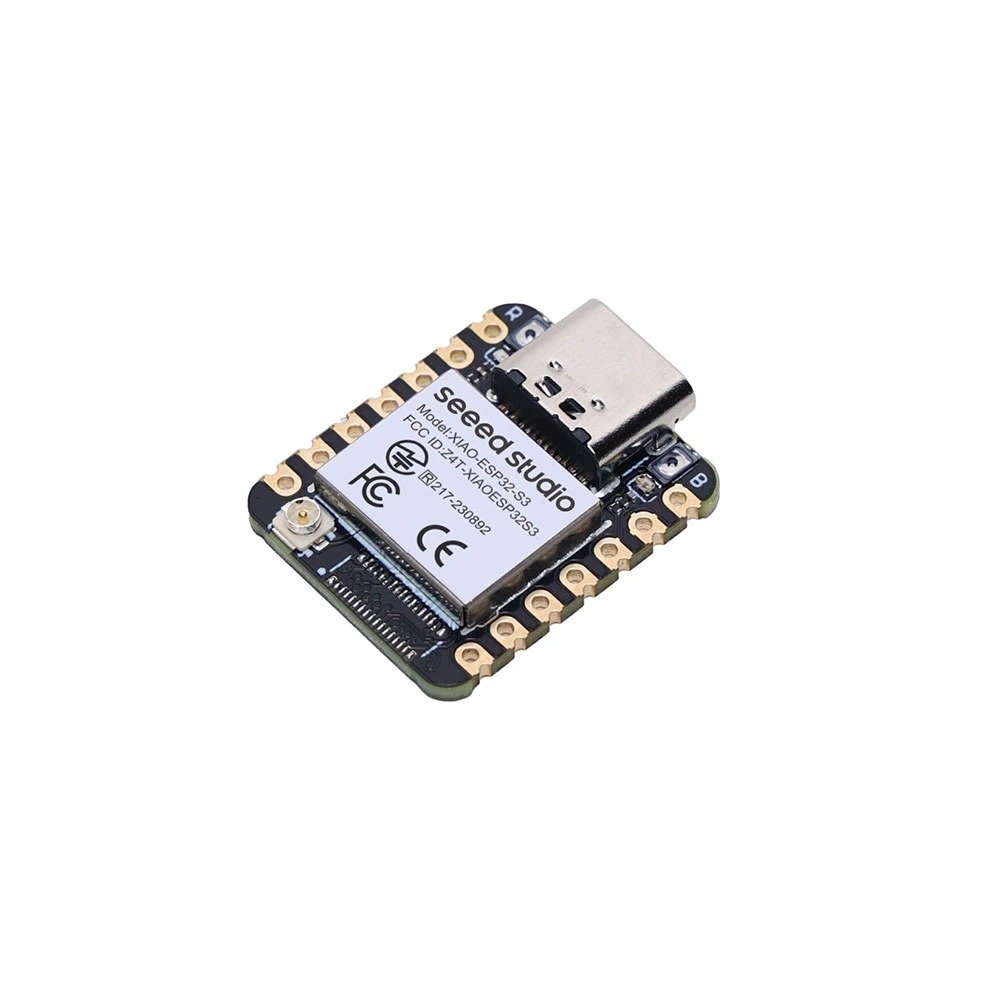

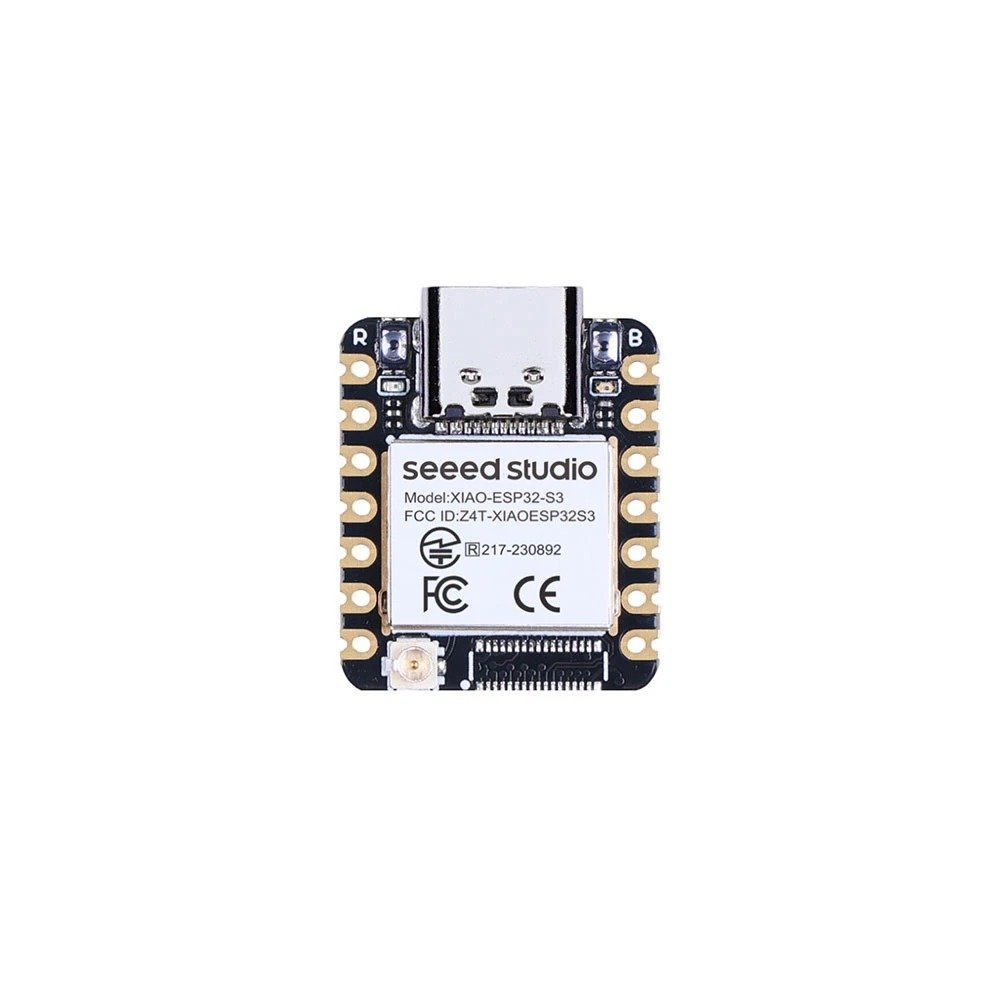

XIAO ESP32-S3 Development Board
The XIAO ESP32-S3 is a compact, powerful microcontroller development board designed for IoT applications, embedded systems, wearable devices, and AI-enabled projects. Powered by the ESP32-S3 chip, it combines wireless connectivity with processing capabilities in a small form factor.
The board supports 2.4 GHz Wi-Fi and Bluetooth Low Energy (BLE), making it suitable for wireless sensor networks, smart devices, and connected electronics. It also provides GPIO pins and common communication interfaces for connecting sensors, displays, and other peripherals.
With support for compatible development environments such as Arduino IDE, ESP-IDF, and MicroPython, the XIAO ESP32-S3 is useful for both prototyping and embedded product development.
Key Features
- Compact XIAO-series development board.
- Powered by the ESP32-S3 microcontroller.
- Built-in 2.4 GHz Wi-Fi connectivity.
- Bluetooth Low Energy (BLE) support.
- Dual-core Xtensa LX7 processor.

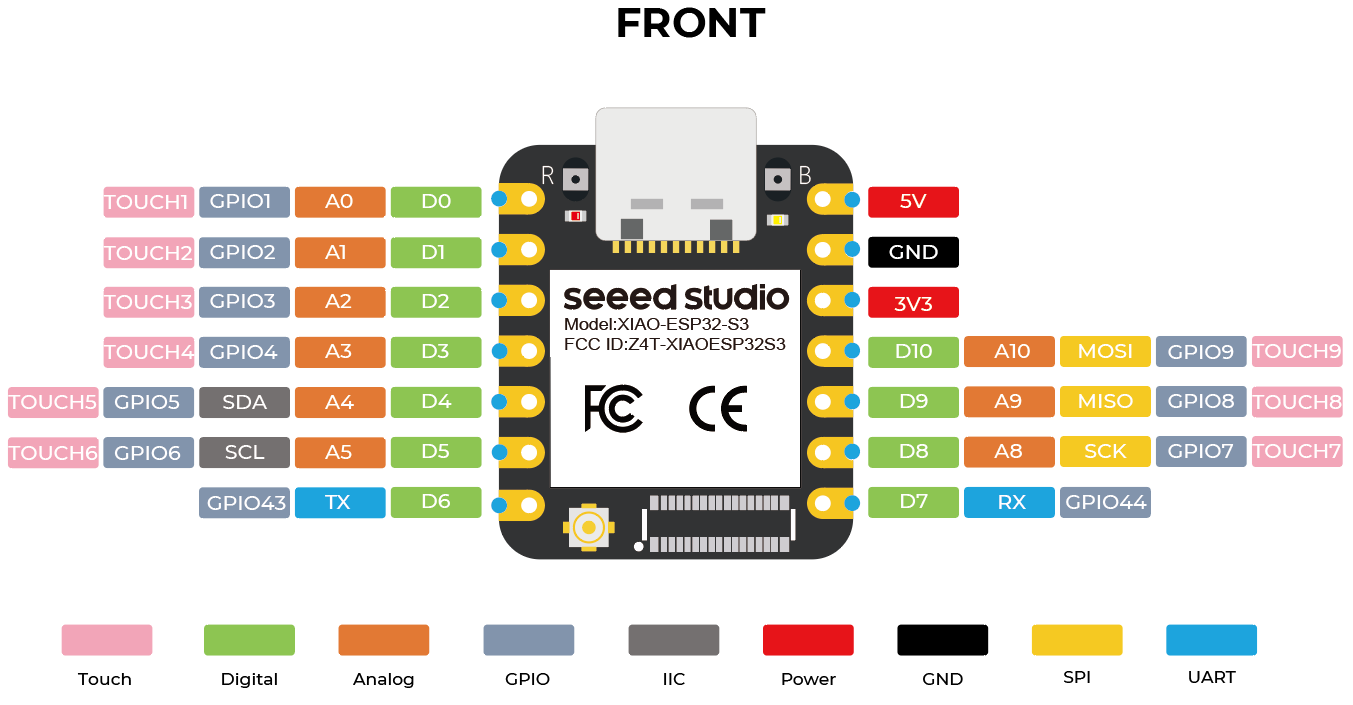

- Supports GPIO, ADC, PWM, UART, SPI, and I²C functions.
- USB Type-C connector for programming and power.
- Suitable for IoT, smart devices, robotics, and embedded AI experiments.
- Compatible with supported Arduino IDE and ESP-IDF workflows.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | XIAO ESP32-S3 |
| Microcontroller | ESP32-S3 |
| Processor | Dual-core Xtensa LX7 |
| Wireless Connectivity | 2.4 GHz Wi-Fi and Bluetooth LE |
| USB Connector | USB Type-C |
| Logic Voltage | 3.3V |
| GPIO | Compact board pinout; available functions depend on pin configuration |
| Communication Interfaces | UART, SPI, I²C |
| Analog Functions | ADC on supported pins |
| Programming Platforms | Arduino IDE, ESP-IDF, MicroPython (support depends on firmware) |
| Applications | IoT, automation, wearables, and embedded systems |
Applications
- IoT and smart home devices
- Wireless sensor monitoring
- Robotics and automation
- Wearable electronics
- Compact embedded systems
- AI-enabled edge-device prototypes
- USB-connected microcontroller projects
Important Notes
- This listing is for the XIAO ESP32-S3, not the XIAO ESP32-C3 or XIAO ESP32-S3 Sense.
- The standard XIAO ESP32-S3 and the Sense version differ in hardware features; confirm the exact model before listing.
- GPIO pins use 3.3V logic and are not 5V tolerant.
- USB cable, headers, and other accessories may not be included.
- Memory configuration and available pin functions should be verified against the exact board version.
